Overview

This guide shows you how to wire your S&B Particle Separator to the Switch-Pros SP9100 power management system, giving you direct control of the separator through your Switch-Pros switch panel.

Step 1: Cut the Harness Plug

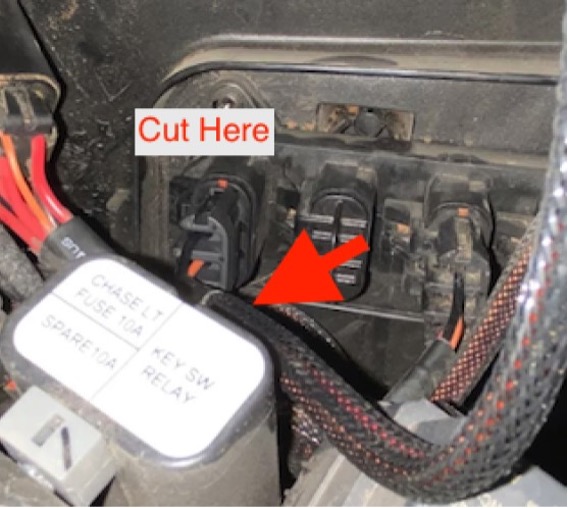

Begin by removing the plug on the S&B harness that normally connects to the bus bar. Cut the harness at the location shown below:

Cutting the harness plug

Step 2: Identify the Wires

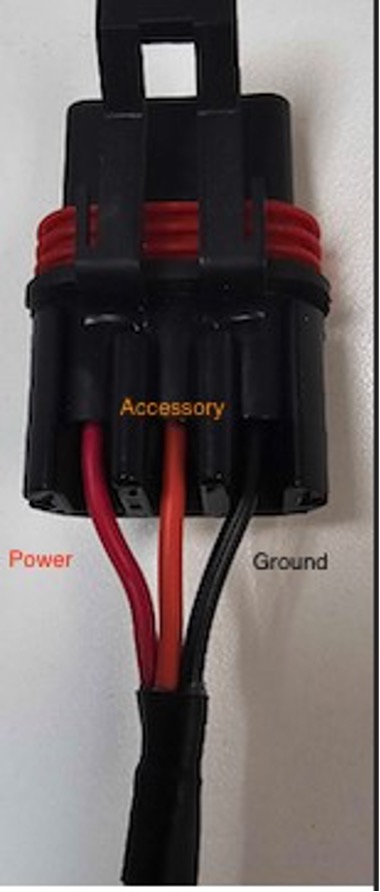

After cutting the plug, you’ll see three exposed wires:

  • Red – Power
  • Black – Ground
  • Orange – Accessory (Trigger)

Use the diagram below to confirm the wire colors and functions:

Wire identification for S&B wiring

Step 3: Wiring to the Switch-Pros Module

Wire each lead as follows:

  • Red (Power): Connect to the positive battery lead going into the Switch-Pros Power Module.
  • Black (Ground): Connect to a chassis ground, ideally the same one used by the SP9100 module.
  • Orange (Accessory): Connect to the output of any Switch 1–4 on the SP9100 panel.

⚠️ Important: Leave the relay and fuse inline on the S&B harness. These components are essential for proper circuit protection.

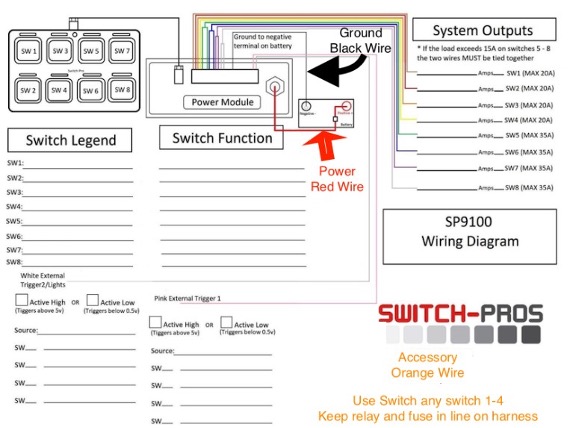

Wiring diagram for Switch-Pros SP9100 setup

Final Notes

  • Once installed, you’ll be able to activate your S&B Particle Separator directly from the Switch-Pros system.
  • Ensure all connections are clean, secure, and weather-resistant.
  • Test the switch after installation to verify everything is working correctly.
